Introduction
Modern hot rolling mills use cross-roll tube straightening machines (TSM) for the strengthening of pipes [2, 3, 9, 12] of different designs, which differ in the number of rollers, the design of the main drives, the bearing structure, the adjustment mechanisms.
As a rule, TSM operate in the technological line of the mill in the absence of redundancy, which imposes high reliability requirements on these aggregates. In many cases, insufficient reliability of the adjustage machines of pipe-rolling shops, along with high technological loads, is due to defects in the structure of their mechanisms. It is known [6, 11] that defects in the structure are determined by mechanisms embedded in the kinematic chains of mechanisms by local and structural redundant links (RL), transform the mechanism into a statically undetermined system. Movement of the mechanism with defects in the structure is possible in the presence of gaps or due to deformation of the links. In the latter case, there are additional static and dynamic loads, not related to the implementation of technological operations, which depend on the errors of manufacturing and installation, rigidity of body parts and units.
In transient and non-stationary modes of mechanisms with redundant links and gaps in kinematic pairs there are significant dynamic, including shock loads, which cause increased wear of elements of kinematic pairs and progressive increase of gaps, resulting in increased intensity of shock impulses and noise [3].
Machines consisting of mechanisms without redundant links, thus statically determined mechanisms do not have the deficiencies mentioned above. Therefore, while designing and modernizing machines, it is necessary to include in their design mainly statically determined mechanisms, because under all other equal conditions, they guarantee the receipt of machines with higher technical and operational parameters.
The analysis of the mechanisms` structure is a qualitative method, which allows to establish the possibility of additional loads, which are not connected with the technological process, arising in the closed kinematic chains of the mechanisms during deformations of the links and the body, assembly, etc., as well as to verify the correctness of structural formation of the mechanisms.
In the process of analysis, all the TPM mechanisms were considered as spatial ones, the links were considered as absolutely rigid ones, and the kinematic pairs and connections in the first approximation – ideal (without gaps). Analysis of the TSM structure was performed on the basis of the O.G. Ozol’s universal structural theory [5].
Six-roll TSM OVV 900x3 (Fig. 1) of the construction of the Starokramatorsk Machine-Building Plant (SKMP), with all the cross, hyperbolic rolls of identical length, is installed at the strengthening tube section of the continuous tube-rolling mill (TRM-140). TSM is designed to work in the technological line of the TRM-140 in the absence of reservation on the rational layout of rolls, according to the type of Kieserling tube straightener [4, 7, 8, 10]. It consists of the bearing structure, individual drive of rollers and adjustment mechanisms.

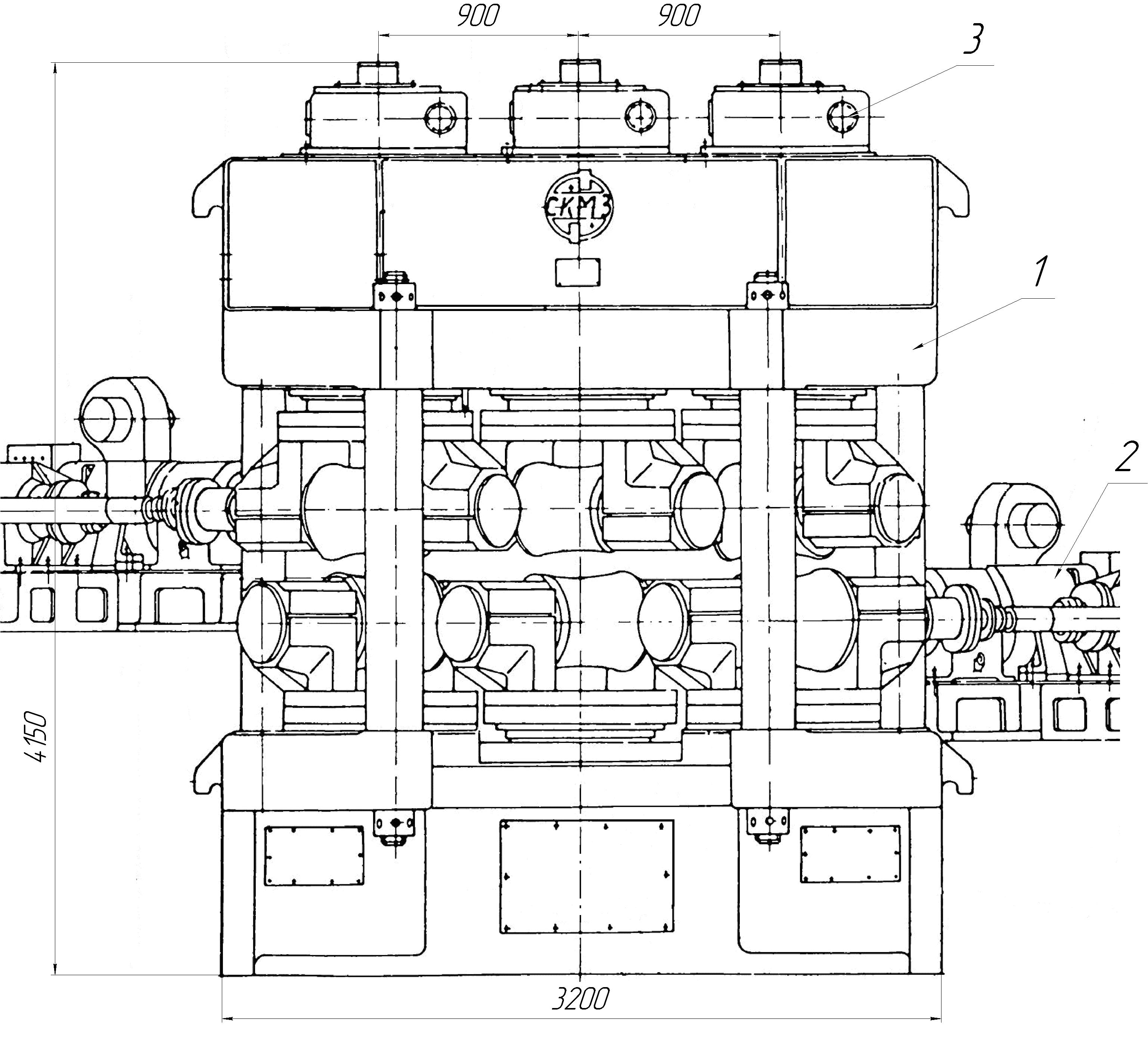

Fig.1.
Six-rolls TSM OVV 900x3 (designed by
SKMP):
1 – bearing structure;
2 – individual drive of rolls;
3 – adjusting
mechanism
There are no studies of structural schemes of the cross-roll TSM in the literature, as well as recommendations on the rational choice of kinematic and structural schemes of TSM mechanisms.
Problem statement
Previously completed TSM studies [3, 4] allowed identifying dynamic and structural imperfections: low vibrational stability of the bearing structure, drives overload, wear and limited life of some major parts and units. Some equipment failures can be caused by structural defects in the kinematic schemes of the mechanisms.
Purpose
The article is aimed to a structural analysis of the basic mechanisms of tube straightening machines, identify structural and local redundant links in the circuits, and prepare recommendations for the rational design of the TSM units.
Methodology
The given task is solved by the means of the theory of mechanisms and machines using the structural analysis of the main mechanisms of the tube straightening machines based on the universal structural theory of O.G. Ozol.
Findings
Extended principle of the machine mechanisms formation, providing inclusion to the machine mechanism not only immovable solid bodies, but also the deformed bodies [2], allows us to consider the structure of machines for pressure processing of metals (PPM) taking into account the plastically deformed workpiece. The deformed bodies mean such bodies the deformation of which is necessary to perform the required functions of the machine. Therefore, PPM machines should include in their structure a deformed workpiece as an integral part of the machine mechanism, whose deformation (change of geometry) and the addition of certain geometric parameters is the reason the TSM was created for.
Determination
of redundant links (RL) for the TSM mechanisms containing internal
kinematic connections of any class was performed in the following
order: according to the kinematic scheme of the given mechanism with
the numbered links, a schematic diagram for Ozol [5] with the
designation of class of each kinematic pair is formed. According to
the structural scheme are calculated: the number of links (n),
the total number of kinematic connections (р),
the number of the mechanism contours
,
;
the total number of links (
)
and moves (
)
of all connections was calculated,
(1)
where
is the number of kinematic compounds of the i-th genus,
;
the number of degrees of freedom of the mechanism (
);
, (2)
where
– the number of main mobilities (according to the number of moving
forces);
– the number of additional mobilities (including the local ones);
–
the number of dynamic links.
The total number of internal redundant links was determined by the formula:
. (3)
The main drive of TSM rollers (Fig. 2). At idle, all TSM mechanisms are independent in their movements and form a system when interacting with the external working body (pipe). The working body combines the TSM mechanisms not only with the kinematic interaction of the links, but also with dynamic phenomena in the plant.
It is known
that compounds of working bodies and links of the mechanism impose
external connections. Since the TSM mechanism always has external
connections, then according to the universal structural theory, it
is necessary to consider it from two positions. Firstly, in
isolation from external bodies, with which it has external
connections (isolated from the treated pipe). The number of freedom
degrees in the absence of external links is called the real mobility
of the mechanism ().
Secondly, in working condition, when external links are acting (the
tube is in the deformation cells). Mobility under existing external
links is the operational mobility of the mechanism (
).
In this case,
is less than
on the number of external connections spent on its reduction. The
TSM mechanism is a mechanism of variable structure, so we will
analyze it step by step.
The first
stage – before the pipe capture by
the rolls (idle), thus, before imposure of external links (Fig. 2,
a). Group
main drive includes six identical transmissions, consisting of
electric motor with a brake pulley, couplings and drive shaft.
The kinematic scheme of the main drive (Fig. 2, a)
of the investigated tube strengthener is a 49-link branching
symmetrical 24 contour mechanism, and a structural diagram (Fig. 2,
b) is its
topological reflection. Mobility of the mechanism of the main drive
rollers
,
includes 6 main mobilities and 6 local (axial) mobilities of the
body of the gear clutches. The general mobility of all kinematic
pairs is defined as the sum of the mobility of all kinematic
connections (1):
.
Then the
total number of internal redundant links will be (3)
.
а
b

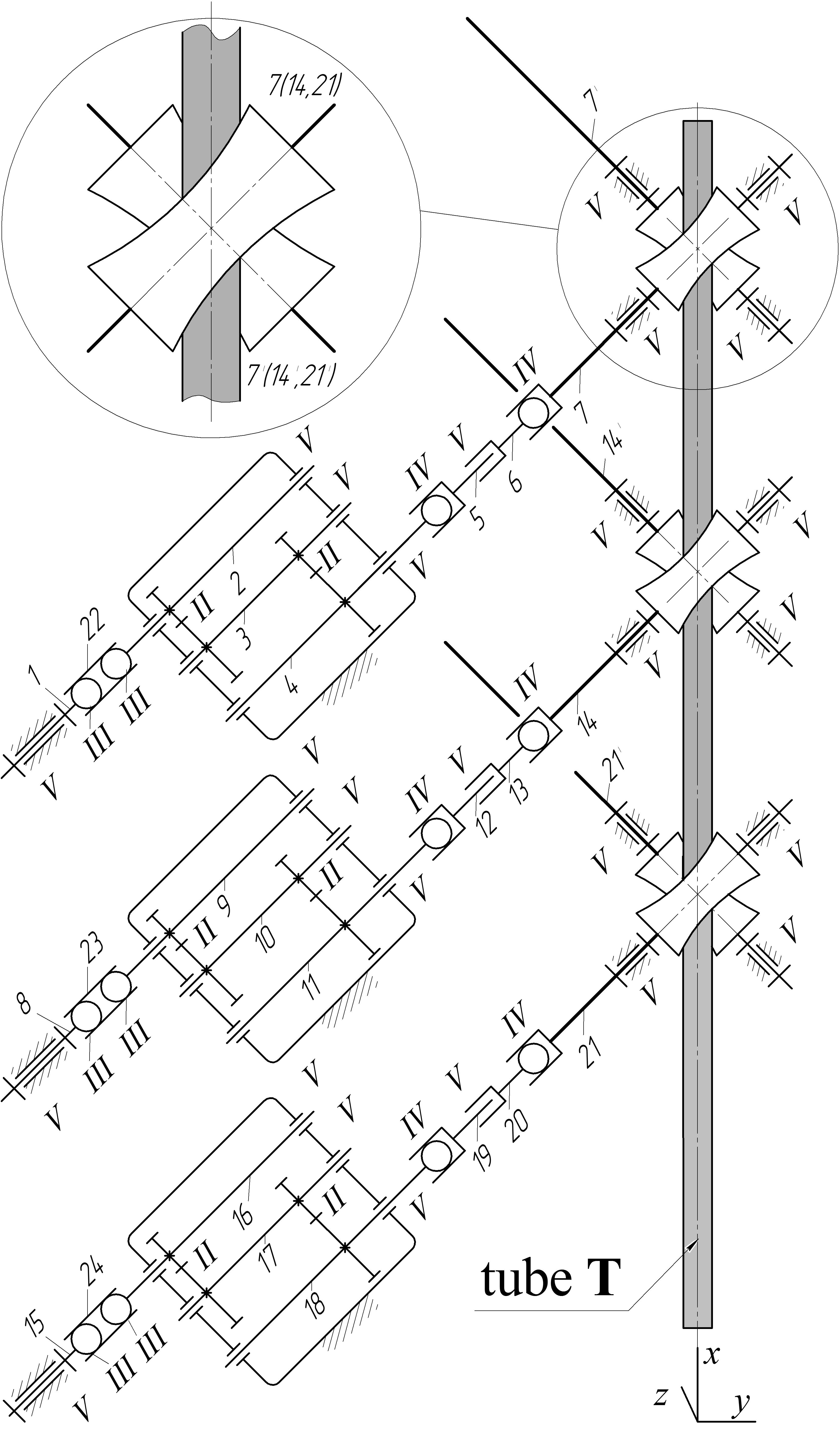

Fig.2.
Main drive of TSM: kinematic (a)
and structural (b) scheme
One RL in each contour with gear-tooth systems in gears, the effect of which is manifested in uneven load on the tooth length at linear contact.
It is known [11] that in machines the resistance to self-alignment of the mechanism links is determined by the value of the frictional forces that arise on the elements of the kinematic pairs during the self-alignment movement.
At continuous self-alignment, frictional forces worsen the distribution of forces in the kinematic pairs, which must be taken into consideration. In transient processes, the spline connection of the drive cardan joints of the TSM, in some cases, may not be able to perform the axial self-alignment mobility, which leads to the transmission of the axial load of the takeoff shaft of the gear unit, and possibly to the destruction of the covers of output shafts. It is more expedient to apply static determined ball spindles, where axial mobility is carried out with a small friction or an unloaded cardan joint, which has a length of the barrel-shaped toothed ring, in comparison with the diameter, assigns it to a third-class pair (including axial mobility with small friction).

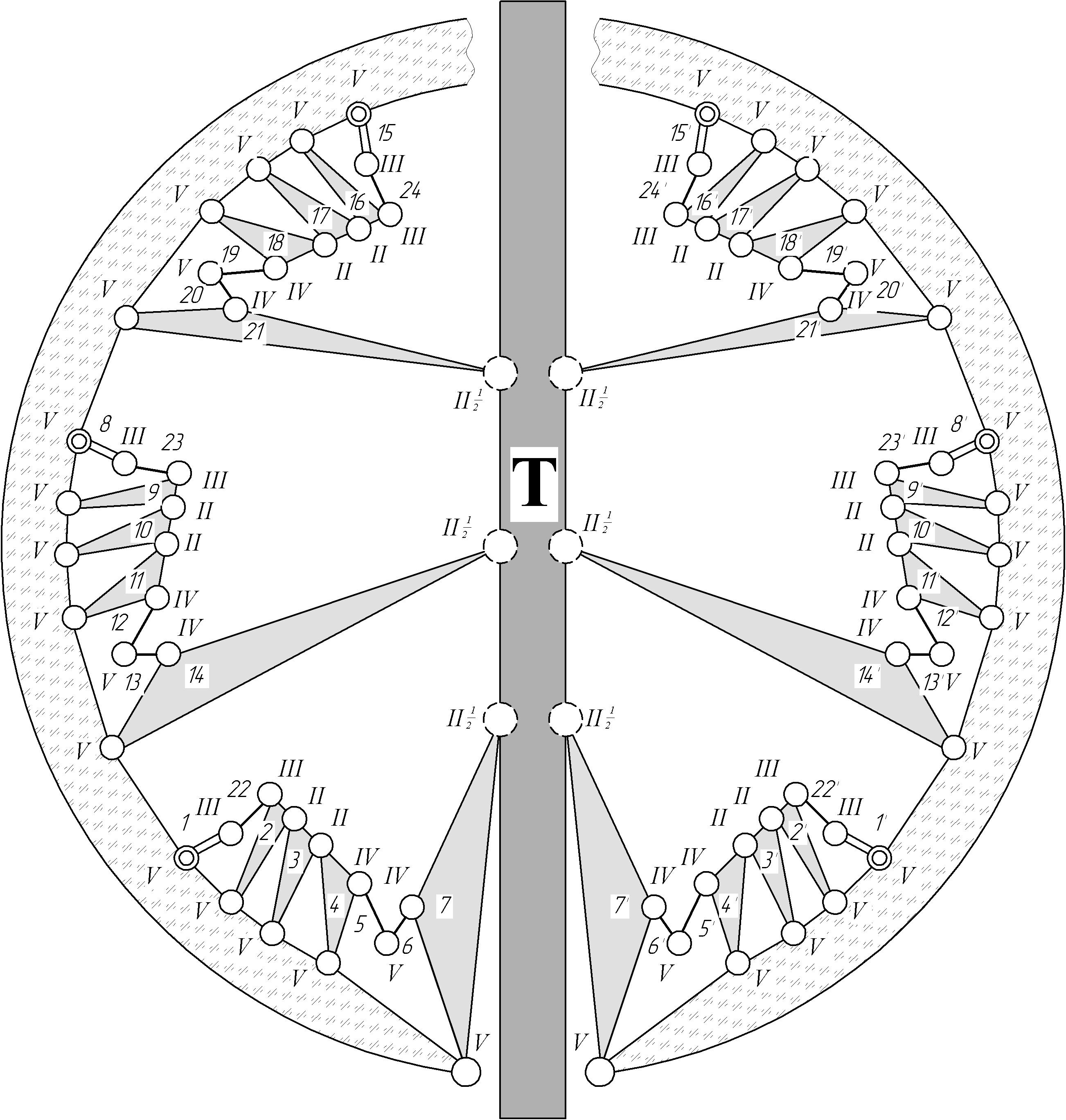

The second stage – strengthening, the pipe is in rolls. After the pipe capture five more independent contour are formed in the scheme, there are, and the drive keeps its mobilities. The presence in the mechanism of external links, in addition to the internal ones, also requires application of generalized structural formula, which allows determining the number of internal, as well as external RL in the mechanism. The number of external RL is determined by the formula [5]
, (4)
where
– the number of external links;
– actual mobility of the mechanism (with removed external links);
– operating mobility (with acting external links), can be
calculated according to the dependence (2);
– the number of lost mobilities of external bodies from the action
of external links. Formula (4) shows how many external links are
spent on reducing the mobility of the link mechanisms (expression in
round brackets) and the external processed body.
When calculating the number of mobilities of the outer «roll – tube» pair, it was taken into consideration that most of the coordinates are overlaid with non-retentive links, which impose a fractional number of constraints [5, 6].
Geometric
unilateral links: pipe turn around the vertical axis (½),
the pipe movement along the vertical axis (½
),
turn around the axis perpendicular to the strengthening axis (½
).
A geometric two-way connection is taken along the axis
perpendicular to the strengthening axis (y).
By friction each external connection imposes two another fractional
holonomic friction links, capable of transmitting the rotation
moment around the longitudinal axis of strengthening (½)
and force along the strengthening axis (½
).
Then the number of external links of pairs will be Sа
= 5·½ + 1 = 3½, and the total number of external links Sа
= 6·3½ = 21. The mechanism mobility has not changed after the
external links application, therefore
,
– the pipe can not move independently of the rolls. After
substitution, the number of external RL is:
.
Most of the 15 redundant links in the five external contours are due to the need for elastic-plastic deformation of the pipe, therefore, in the strengthening scheme with three pairs of rolls, the duplication of each of them (pair) of constraints at the corresponding coordinates causes the technological deformation of the pipe. In this quantity of external RL there are also the harmful ones. Kinematically, it would be enough to make only the first pair of rollers driven; the other two driven pairs introduce one torsional (around the strengthening axis) and axial (along the correcting axis) tension. Since the links on these coordinates are frictional, these tensions cause the rolls to wear out, and in the tube arise torsional and stretching (compression) tensions that are not needed for strengthening. In addition, there may be frictional self-oscillations. Some are compensated by elastic deformation of the pipe.
Mechanisms of setting relate to the mechanisms of episodic action, the regulation is not performed during the technological process and the size of the links is large as compared to the size of the kinematic pairs, so it is advisable to perform a statically determined mechanism, using increased gaps in the link connections.
Roller
angle setting mechanism. It is a
simple triangular spatial mechanism (Fig. 3, a)
with one structural and one local internal independent contours
(Fig. 3, b).
Mobility of the mechanism
,
total mobility of all kinematic pairs
.
Then the number of RL
,
where 4 RL in the local contour
and
1 RL in the structural contour
.
In this
case, it is necessary to ensure coherence of the support nodes of
the worm 1 during their manufacturing. The RL in the structural
contour is harmless because it is compensated by breaking-in of the
worm pair
.

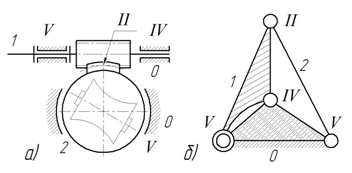

Fig.3.
Mechanism of angle setting of the rolls:
kinematic
(a)
and structural (b)
scheme

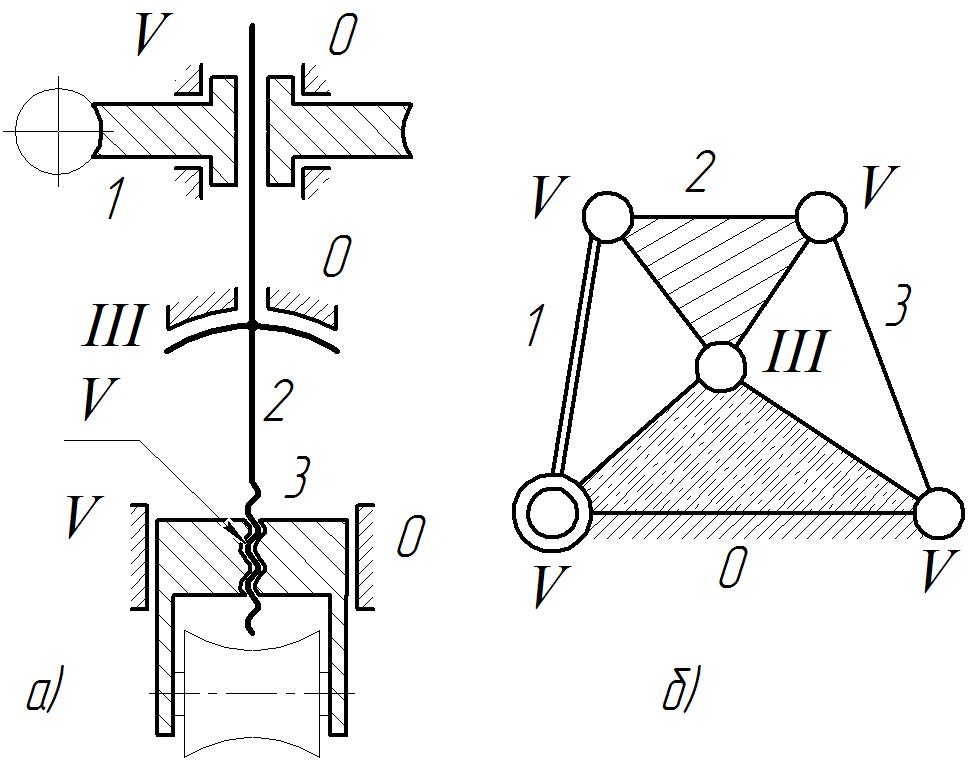

The
mechanism of axial roll setting of the top bed.
Kinematic (Fig. 4, a)
and structural (Fig. 4, b)
schemes are presented without accounting the device of static
balance of weight and selection of axial gaps of the upper roller
node. Structural parameters of the mechanism: mobility
,
number of independent contours
,
general mobility of kinematic pairs
;
number of RL
.
The contours
and
are
symmetric, so each of them has three RL. If you provide the required
gaps in the slot pair
and the guides of the prismatic slider
(or in the combination screw-slider
),
then in the scheme for 4 RL will be less.
Fig.4.
Mechanism of axial setting
of the rolls of the top bed:
kinematic (a)
and structural (b)
scheme

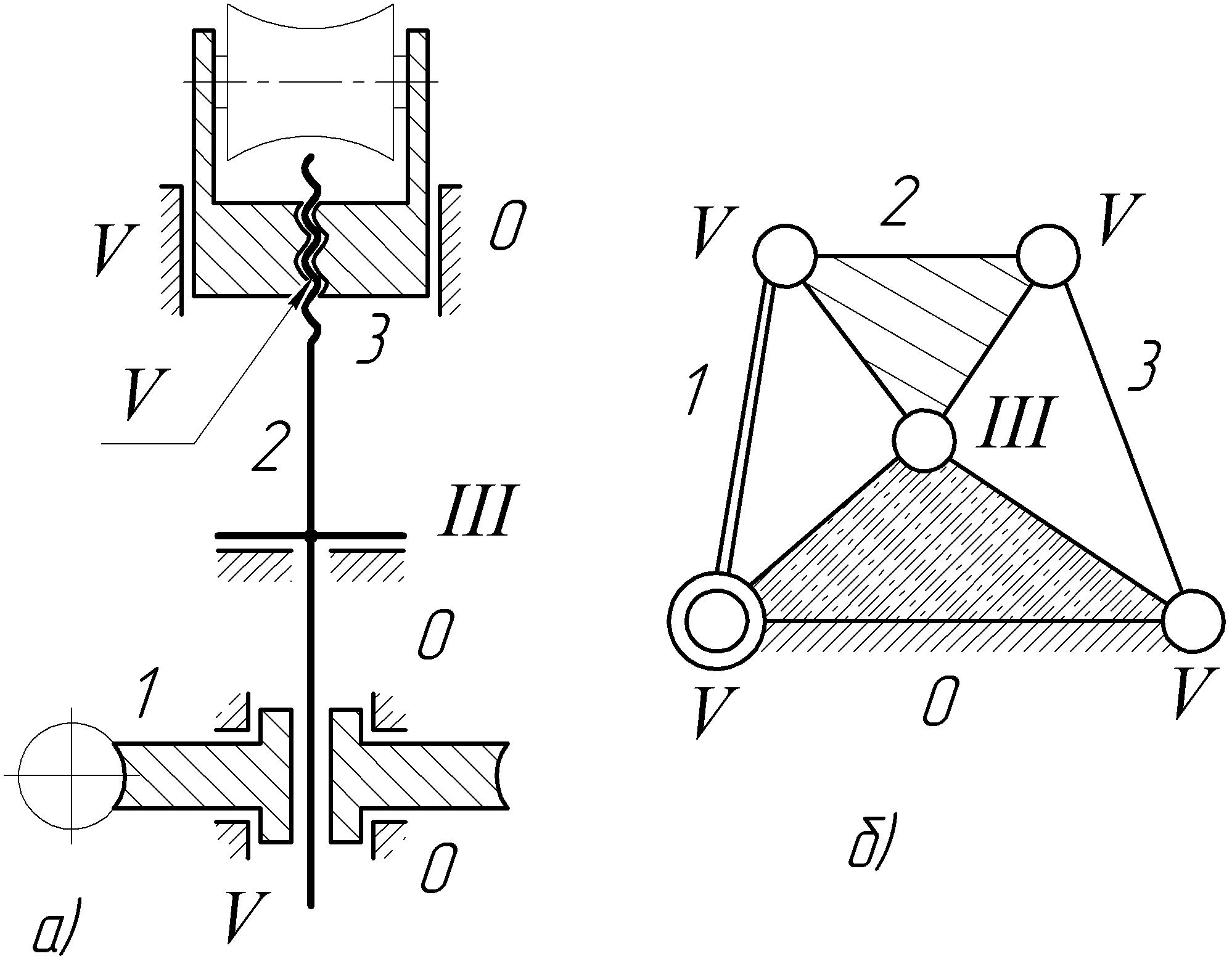

Mechanism
of angle setting of rollers of the bottom bed (Fig.
5, a).
The block diagram has (Fig. 5, b):
the number of independent contours ,
general mobility of kinematic pairs
.
Mobility of the mechanism
,
and the number of RL is
.
Fig.5.
Mechanism of angle setting
of the rolls of the bottom bed:
kinematic (a)
and structural (b)
scheme
The contours
and
,
as in the previously considered mechanism, are symmetric, so each of
them has three RL. The presence of mobility in a pair of
in
the horizontal plane does not allow to increase the gap in the slip
pair
to
get rid of tensions in the connections of the vertical shaft 2.
The
mechanism of the axial setting of the middle roll of the bottom bed
(Fig. 6). Hydraulic axial setting
mechanism consists of 2 movable links, one structural and one local
contour, it has a general mobility in accordance with the
formula (2)
(basis
and local
– piston rotation around the vertical axis).

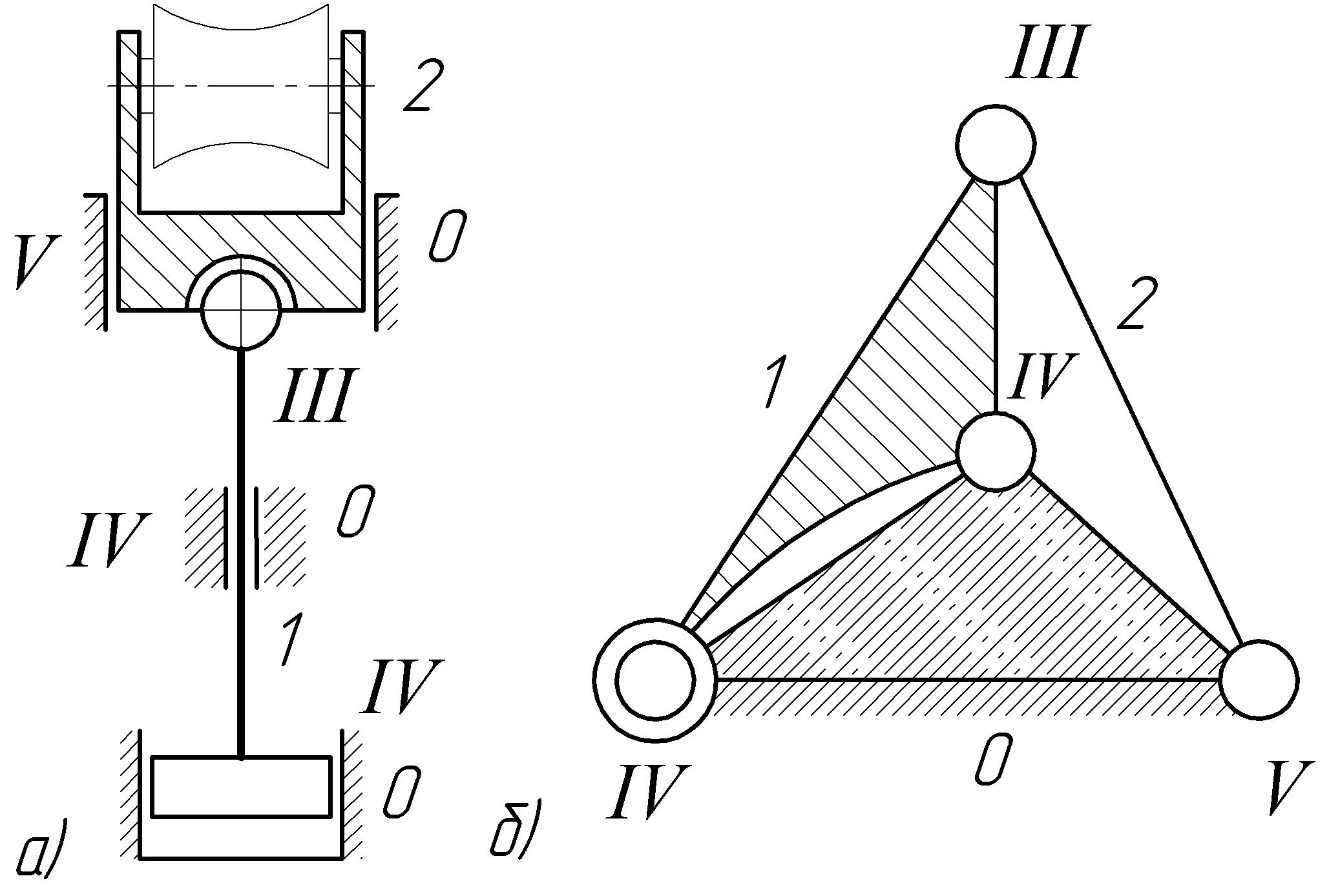

Fig.6.
Mechanism of axial setting
of the middle roll of the bottom bed:
kinematic (a)
and structural (b)
scheme
The number
of local RL in the contour
was determined by the formula [5]:
,
where
– the sum of all links imposed by each of the two joints of the
body-piston and body-stem
,
S – class of kinematic pair
,
that is, 4 RL are formed. In the circuit
the number of RL
.
One can
eliminate all RL, if in the movable connection of the stem and the
piston a ball-and-socket hinge will be applied, and the pilot of the
stem-body will be made so short that it would be possible to
attribute the modified kinematic pair to four-movable one
. Then the improved mechanism will not
have RL:
,
,
,
.
Originality and practical value
For the first time a structural analysis of the mechanisms of a cross-roll tube straightening machine was performed taking into consideration the presence of external fractional links, which are superimposed on the pipe-roller pairs.
Practical recommendations for the elimination of harmful redundant links that were found during the structural analysis of the main and auxiliary mechanisms of TSM have been developed.
Conclusions
The main drive of the rollers of the tube straightening machine is a mechanism of a variable structure with non-stationary links. The pipe for the mechanisms of the main drive is an external working body, which imposes non-retentive fractional links. The scheme of the main drive mechanism contains fifteen redundant links, which are mostly determined by the needs for elastic-plastic deformation of the pipe; some of them are harmful and cause tension in contours and deformation and wear of the drive parts.
In the auxiliary mechanisms of roll setting also revealed local and structural redundant links. The ways to reduce them were proposed.
