Introduction

One of the main users of drinking water are railways, therefore efficiency improvement of natural water purification is an urgent problem.

Coagulation is a powerful tool of intensifying the main process of natural waters purification, the successful completion of which results in the quality of the treated water supplied to the consumer [4-6, 14, 20].

Intensification of the coagulation process is of great importance in connection with the increasing requirements for the quality of drinking water.

Through a rational process: the right choice of coagulants, flocculants, places and conditions for their introduction into water under purification, it is possible in many cases to increase the productivity of structures, to make a cheaper process and improve the quality of water purification [1, 10, 12, 13, 18].

In all cases, with the use of any coagulants, the conditions for mixing the reagent with water and the conditions for the flocculation are crucial for the further process of water clarification.

According to researchers, conducting the processes of mixing water with the coagulant and flocculation in optimal conditions leads to significant savings of the coagulant (up to 30%), reduces the time of water presence in sediment basins due to the formation of quick-settling flocs, reduces the load on the filters on contamination (up to 50%), increases the filter cycle and improves the quality of water purification [3, 7, 9, 17, 19].

In most cases, when the coagulants are injected into the water, physical and chemical reactions occur, the ending of which until the time of full mixing of the reagent with water can lead to a violation of optimal coagulation conditions or to the excess coagulant. Thus, it is necessary to provide such a mode of operation of the mixers, so that the coagulant comes in contact with the maximum number of particles of contamination before the end of the of hydrolysis-polymerization reaction.

Purpose

The purpose of the study is increase in operational efficiency of corridor-type baffled mixing basin by installing of cross porous barriers made of gravel (or other materials) and epoxy resin, grade ED-20 (ED-16) with the hardener polyethylenepolyamine (PEPA), approved by Ukrainian Ministry of Health in systems of utility and drinking water supply. The first stage of the research: the experiments to determine the local resistance of the porous barrier.

On the basis of the conducted researches to develop a calculation method for corridor-type baffled mixing basin with porous polymer-concrete barriers.

Methodology

In solving the problems associated with water purification, the case of disperse systems coagulation dispersed in a moving fluid is considered. Disperse particles undergo Brownian motion, the intensity of which depends on the size of particles. In the process of aggregation caused by the Brownian motion, the colloidal particles reach the size at which the effect of the Brownian motion is stopped. If the further contact between the particles is not provided by mixing the water, coagulation is stopped. Sometimes this further contact is provided by the settling of the largest particles, which, while their moving downward capture smaller particles. The first phase of coagulation described above is called perikinetic one. Increasing the efficiency of perikinetic coagulation is achieved by reducing the stability of colloidal particles. Therefore, the phase of peri-kinetic coagulation stipulates the choice of type and dose of coagulant. The phase of perikinetic coagulation ends when the particles reach a size of 1-10 microns. The phase of perikinetic coagulation coincides with the period of "rapid" mixing of coagulant with water, which significantly effects the efficiency of coagulating water purification.

Until recently, it was believed that the purpose of the mixers was to evenly distribute the coagulant in the water under purification. In domestic practice it is generally accepted that mixing should finish before the formation of flocs in the whole mass of water.

At present it is belived that mixing the coagulant with water should be carried out extremely fast and the process taking place in the mixer is crucial for furhther coagulation stages.

The direction of water purification technology associated with the instantaneous distribution of the coagulant in water is based on the coagulation theory, according to which the role of intermediate dissolved aluminum complexes in the destabilization of suspended particles is very great. At the same time, the required mixing velocity of the coagulant with water is dependent on the rate of formation of compounds capable to destabilize contaminant particles. Ineffective mixing can lead to the excess coagulant and a small rate of aggregation of particles at a given dose of coagulant [5, 10, 12].

In our country the hydraulic mixers are widely used, including a corridor-type baffled mixing basin [5, 6, 10, 13]. The operation of mixers is accepted to characterize as the value of the average gradient of velocity (G), that is, the intensity of mixing. Researches of Rozhdyestvyenska E. A., Mirzayev A. showed that the effectiveness of the coagulants and flocculants action increases with an increase in the intensity of mixing in comparison with the usual accepted one approximately G = 250 ... 300 s-. At the same time, the dose of reagents and the time required for their full distribution in water decreases with an increase in the velocity of the gradient [12].

The disadvantages of the corridor-type baffled mixing basin include: impossibility of regulating the intensity of mixing, the usage for mixing of only one reagent, the inadequate efficiency of its operation.

The Department of Water Supply, Sewage and Hydraulics at KHNUCA proposed and studied the corridor-type baffled mixing basin with slit-type cross barriers [16].

The disadvantages of the proposed baffled mixing basin are that the slit-type barriers located in the mixer channels only change the velocity of the water, owing to the mixing intensity increases. But mixing the reagents with the initial water does not occur particularly in the slit-type barriers.

Therefore, it is proposed to increase and adjust the intensity and time of mixing the reagents with the initial water in the barriers themselves and to improve the distribution of the flow through the section of the mixer corridors.

The problem is solved due to the fact that in the channels of the barrier mixer the removable porous barriers locate perpendicular to the barriers, which are made on the basis of a bonding agent [11,15] (for example, porous polymer-concrete barriers). Porous barriers increase the intensity of mixing the reagents with the initial water due to the fact that mixing occurs not only in the volume of the mixer, but also in the porous barrier itself. Porous channels have a twisted shape that connect and separate the pore channels between themselves. The flows of the initial water and solutions of reagents that move along the pore channels collide with each other, connect and separate, which increases the intensity of mixing the reagents with the initial water. And the even flow of the initial water, mixed with the reagent, from the pore channels of the porous barrier improves the flow distribution along the corridor cross-section in the mixer. Changing the thickness of the porous barrier allows you to adjust the time of mixing of the initial water with the reagents in the porous barrier itself. Changing the filler material of the porous barrier allows to vary its porosity (for example, the porosity of shungizite ≈ 65% and volcanic slag ≈ 55%), which makes it possible to change the flow velocity in the pore channels of the barrier, that is, to regulate the intensity of mixing in the barrier. Changing the particles sizes of the filler of the porous barrier changes the sizes of the pore channels of the barrier. The larger the size of the filler particles, the greater the size of the pore channels, which makes it possible to match the size of the filler particles for each reagent.

Porous barriers have local resistances, so they have to be set at the beginning or at the end of the channel in which they are located, since the water level before the porous barrier is greater than after it, and the velocity of water motion in the mixer channel have to meet current standards.

The proposed construction of an advanced corridor-type baffled mixing basin with porous barriers is schematically presented in Figure 1.

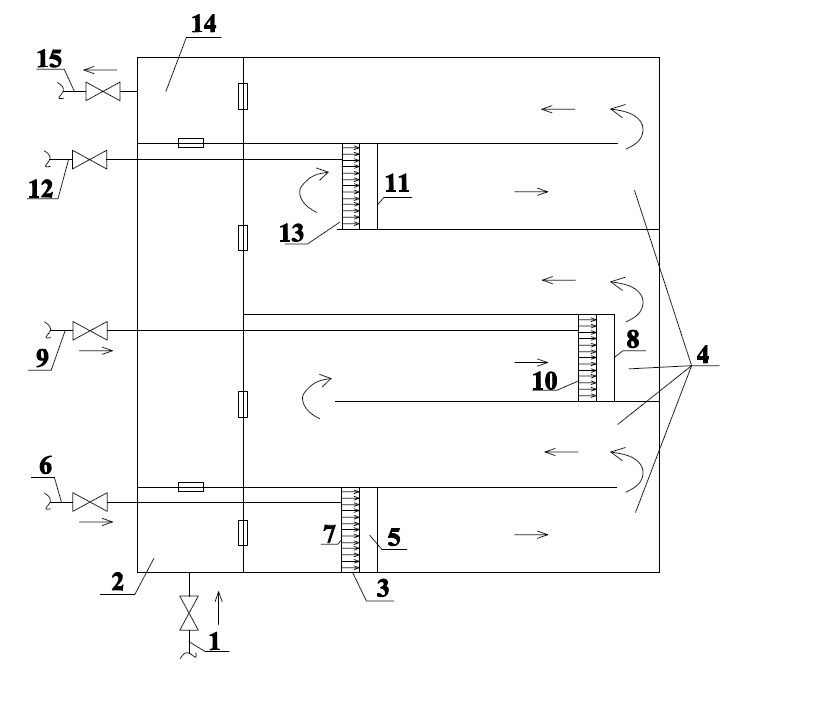

Fig. 1. Scheme of advanced corridor-type baffled mixing basin with porous barriers

The advanced baffled mixing basin consists of a pipeline of initial water supply – 1, a feed well – 2, body of an advanced baffled mixing basin – 3, channels of advanced baffled mixing basin – 4, porous barrier – 5, with the first type of the filler material and the size of its particles, as well as with the first thickness, the pipeline (hose) of the first reagent supply – 6, the dispersed tubular slit-type or perforated (holed) supply system of the first reagent (for example, chlorine reagent) – 7, porous barrier – 8, with the second type of the filler material and the size of its particles, as well as with the second thickness, the pipeline (hose) of the second reagent supply – 9, the dispersed tubular slit-type or perforated (holed) supply system of the second reagent (for example, coagulant) – 10, the porous barrier – 11, with the third type of the filler material and the size of its particles, as well as with the third thickness, the pipeline (hose) of the third reagent supply – 12, the dispersed tubular slit-type or perforated (holed) supply system of the third reagent (for example, the flocculant) – 13, the collection chamber – 14, pipeline – 15 of the initial water diversion, mixed with reagents.

The advanced corridor-type baffled mixing basin with porous barriers operates in the following manner. The initial water through the pipeline – 1 enters to the feed well – 2 and then into the body of the advanced baffled mixing basin – 3 in its first channel – 4, passing through the dispersed tubular slit-type or perforated (holed) supply system of the first reagent – 7, in which through the pipeline (hose) – 6 the first reagent is fed and the porous barrier – 5, in which it is intensively mixed with the first reagent. Further, the mixing process and the contact time of the reagent with the initial water occur in channels – 4 of the advanced baffled mixing basin. Then the initial water, which is mixed with the first reagent, enters the next channel 4 of the advanced baffled mixing basin, passes through the dispersed tubular slit-type or perforated (holed) supply system of the second reagent – 10, in which through the pipeline (hose) – 9 the second reagent is fed and a porous barrier – 8, in which it is intensively mixed with the first and second reagents. Next, the mixing process and the contact time of the reagents with the initial water occur in channels 4 of the advanced baffled mixing basin. Then the initial water, which is mixed with two reagents, enters the next channel 4 of the advanced baffled mixing basin, passes through the dispersed tubular slit-type or perforated (holed) supply system of the third reagent – 13, in which through the pipeline (hose) – 12 the third reagent is fed and the porous barrier – 11, in it it is intensively mixed with the third and the previous reagents. Further, the water, mixed with reagents, moves to last channels 4 of the advanced baffled mixing basin, enters the collecting chamber – 14 and through the pipeline – 15 is discharged from the mixer.

To verify the proposed solution to increase the efficiency of advanced baffled mixing basin due to the installation of transverse porous barriers in the mixer corridors, experiments were carried out on the model of such a mixer.

The first stage of experiments was carried out on the model of the proposed mixer 1:4 in order to determine the local resistance of the porous barrier.

The porous barrier is made of gravel, size 10÷15 mm diameter (average diameter 12.5 mm) and epoxy resin, grade ED-20 with a polyethylenepolyamine (PEPA). This material is characterized by high strength, high chemical resistance to the aggressive effect of water treated with reagents, lack of biofouling in the course of long-term exploitation [2, 8]. The barrier has a thickness of 50 mm. The local resistance of such a barrier was measured using the piezometers installed before and after the porous barrier. The velocity of water motion in the mixer corridor was determined depending on the duty of water supplied to the mixer, by the water meter and the volume method.

As it known, any local resistance can be determined by the formula [12]:

, (1)

where ξ – coefficient of resistance; v – velocity of water motion in the mixer; g – free fall acceleration, equal to 9.8 m/s².

In this case, there is a question: how to define the velocity of motion (v) if a porous barrier is installed. In other words, how to define the velocity of water motion exactly in the porous barrier. It can be realized, if we determine the porosity of this barrier (using the Archimedean method), and then recalculate the velocity of water motion exactly in the barrier pores. In our opinion, it is better to start out from the water motion velocity in the mixer corridors, it is an indirect approach to determining the velocity of water motion in the barrier pores, but directly depends on it.

Thus, knowing the water level difference in front and behind the porous barrier (accordingly to the piezometer), knowing the velocity of water in this mixer corridor, where the porous barrier is installed, one can determine the resistance coefficient (ξ) for the given porous barrier.

The research was carried out at the velocity of water motion in the mixer corridor from 0.1 up to 0.2 m/s.

Studies have shown that when the flow of water in the mixer corridor with velocity was about 0.1 m/s, the head losses in the barrier under research was 17 cm (0.17 m), and at the velocity of 0.2 m/s – 0.68 m.

Substituting the obtained experimental values in the formulas (1), we determine the resistance coefficient ξ. The resistance coefficient is 333.2. At the velocity of water motion in the mixer corridors from 0.7 to 0.5 m/s [12] the head losses is from 8.33 to 4.25 m respectively. Such losses are relatively great. Therefore, it is recommended to arrange the pressure mode of motion in the mixer corridors before the porous barrier along the water motion, as well as to increase the size of the aggregate grains.

Baffled mixing basins are designed in the form of channels with barriers that provide a horizontal or vertical motion of water with 180-degree turn. Head loss on one turn is determined by the formula:

, (2)

where ξ –resistance coefficient, which is 2.9; v – velocity of water motion in the mixer corridor, which is from 0.7 to 0.5 m/s.

The velocity of water in each mixer corridor can be found by the formula:

(3)

where V_i-1 – velocity of water motion in the previous corridor of the mixer, m/s; V_str – velocity of water motion in the first corridor of the mixer, which is taken 0.7 m/s; V_end – velocity of water motion in the last corridor of the mixer, which is taken 0.5 m/s; n – number of barriers.

Water depth in each corridor can be found by the formula:

(4)

where H_i-1 – depth of water in the previous mixer corridor, m; h – head loss on the flow rotation, which are defined by the formula (2); h_n – head loss in the porous barrier.

The width of each corridor is determined by the formula:

(5)

where q_mix – mixer performance, m³/s; V_і – velocity of water motion in the corridor, m/s; H_i – water depth in the corridor, m.

The construction length of the mixer is:

(6)

where B_і – total width of all corridors, m; _wall і _bar –thickness of the mixer wall and the barrier between corridors respectively, m.

Total mixer volume:

(7)

where t – time of water presence in the mixer, which takes no more than 2 minutes.

The area of the mixer, coming from the depth of the first corridor will be:

(8)

Based on the mixer volume and the total width of the corridors, we find the width of the mixer

(9)

The head losses in each porous barrier are determined by the formula:

(10)

where v_c – velocity of water motion in the corridor of the mixer, where a porous barrier is installed;
 – the resistance coefficient, which is determined experimentally for each porous barrier.

The total head losses are:

(11)

where n₁ – number of porous barriers.

The thickness of the porous barrier must be not less than 50 mm, and the size of the filler is not less than 30 mm, which depends on the technological processes of mixing. Porous barriers are mounted in blocks no higher than 250 mm and up to 1000 mm in length.

Findings

Studies have shown that when the water flows in the mixer corridor at a velocity of 0.1 m/s, the head losses in the porous barrier was 17 cm (0.17 m), and at a velocity of 0.2 m/s – 0.68 m. Accordingly to the obtained experimental values the resistance coefficient was determined (ξ), which is 333.2 for the investigated barrier, which makes it possible to define the head losses in the barrier including other velocities of the water.

Originality and practical value

The corridor-type baffled mixing basin with porous polymer-concrete barriers was developed and investigated, which allows increasing and regulating the intensity and time of reagent mixing with the initial water exactly in the barriers and improving the distribution of the flow through the section of the mixer corridors.

Location of removable porous barriers in the corridors of the baffled mixing basin allows to increase its performance, and improve the quality of treated water.

Conclusions

The proposed construction of an advanced corridor-type baffled mixing basin with porous polymer-concrete barriers allows to increase and regulate the intensity and time of reagent mixing with the initial water exactly in the barriers and to improve the distribution of the flow through the section of the mixer corridors. It makes possible to change timely the technological processes of mixing the reagents with the initial water, depending on the physical-chemical indicators of the initial water, types and kinds of reagents that can be used at the water purification station.

Based on the conducted experiments, it is recommended to arrange the flow pressure mode in the mixer corridors before the porous barrier according to water flow, as well as to increase the size of the aggregate grains.
